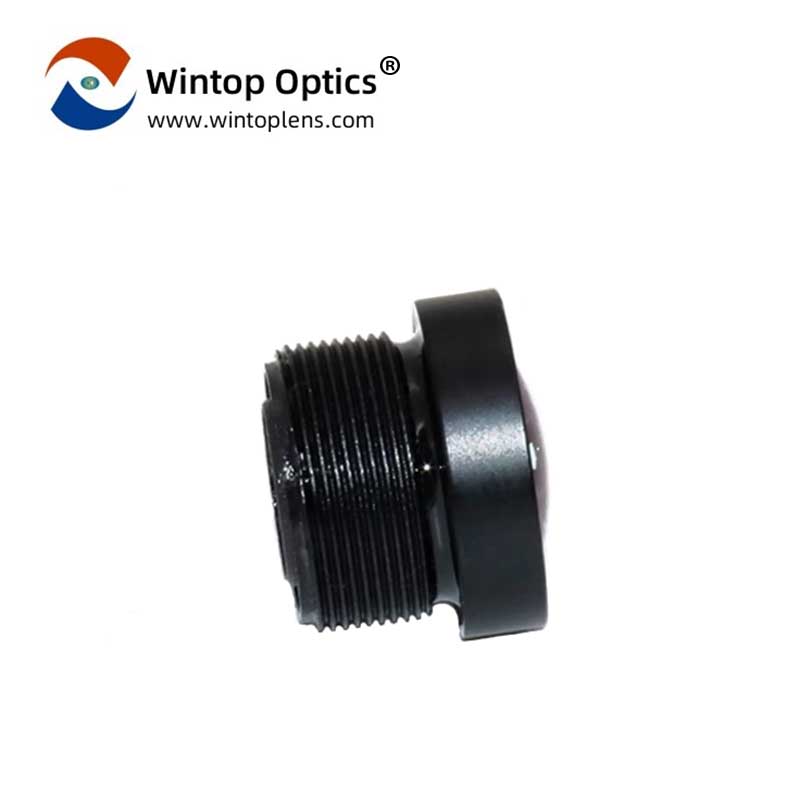

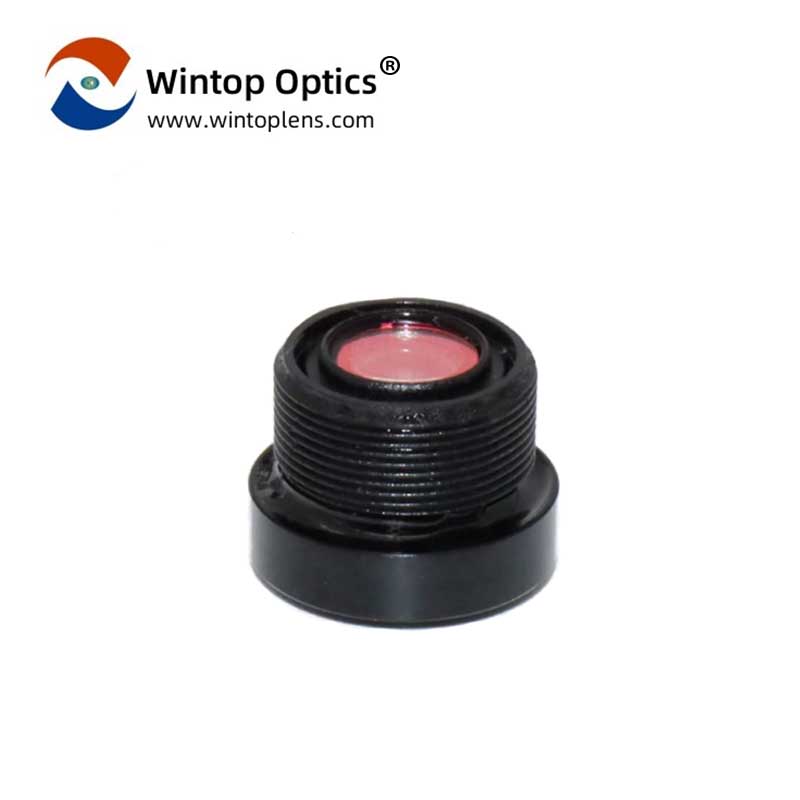

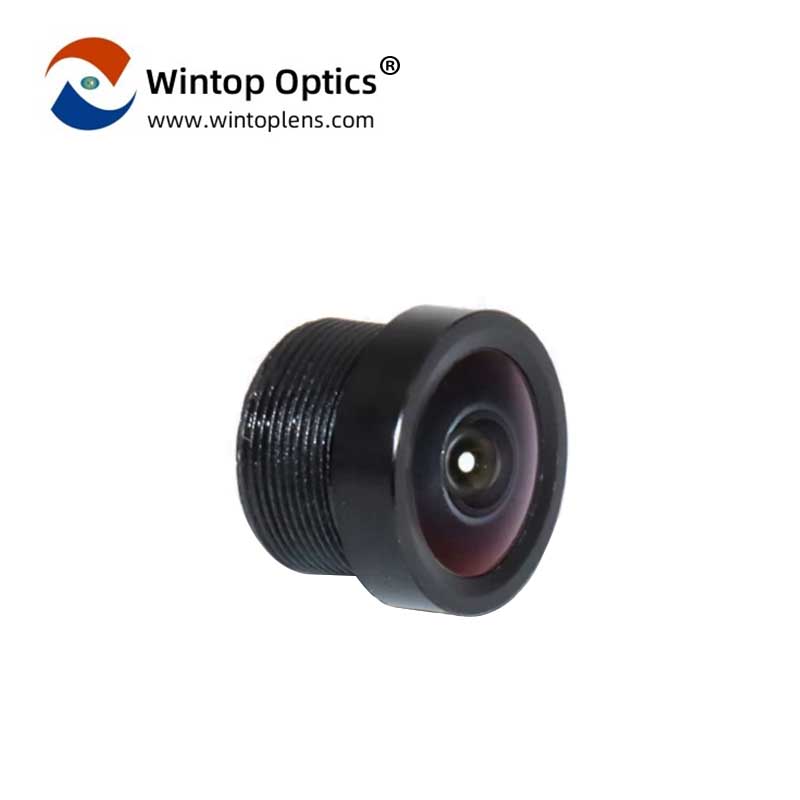

1/4'' F2.5 IP67 Car Rearview Lens M8 Camera Lens YT-5100-S1

  • 30W car rearview camera lens
  • 145 degree reversing assistance camera lens
  • Total optical length of 9.96mm
  • 商品番号 :

    YT-5100-S1
  • センサー :

    1/4''
  • F/NO. :

    2.5
  • EFL :

    2.1
  • 光TTL :

    9.96
  • 番手 :

    M8*P0.5
  • 視野(水平/垂直/奥行き) :

    95/70/145
  • 構造 :

    3G1P

YT-5100-S1: Diverse application scenarios

know more about YT-5100-S1Lens parameters
EFL( mm) 2.1
F/NO. 2.5
Optical TTL 9.96
BACK FOCAL LENGTH 2.8
FLANGE BACK LENGTH 1.8
TV DISTORTION -32%
CRA 21°
Storage At Temperature -40℃~+85℃
WAVELENGTH

Tavg>=88%@440-620 nm

T=50% 648±10 nm

Dust Level IP67K
STRUCTURE 3G1P

Application scenarios:

1.Reverse assist: The on-board rearview camera lens helps the driver perform the reverse operation, providing a clearer rear image, reducing blind spots and reducing the risk of reversing accidents. Through the images of the rearview camera lens, the driver can better understand the distance and positional relationship between the vehicle and other obstacles.

2.Parking assistance: The rear-view camera can provide assistance during the parking process. Drivers can more accurately grasp the relationship between the vehicle and the driving route, parking spaces, etc. by viewing the images of the rear-view camera, ensuring that the parking action is completed safely.

3.Blind spot monitoring: Many vehicles have a blind spot in the rear, an area that the driver cannot directly observe in the rearview mirror. An onboard rearview camera lens can help the driver monitor the blind spot by displaying an image of the rear to prevent other vehicles or pedestrians from entering the blind spot, thus improving driving safety.

4.Traffic monitoring: Rear-view cameras lens can also be used to monitor information such as traffic flow and traffic light status behind, helping drivers make more informed driving decisions.
