商品番号 :
YT-1753P-F8センサー :
1/2.7" 1/2.8" 1/3"F/NO. :
1.1±10%EFL :
3.30±5%光TTL :
22.23±0.3視野(水平/垂直/奥行き) :
1/2.7"(101°/70°/136°) 1/2.8"(97°/70°/131°) 1/3"(96°/51°/114°)構造 :

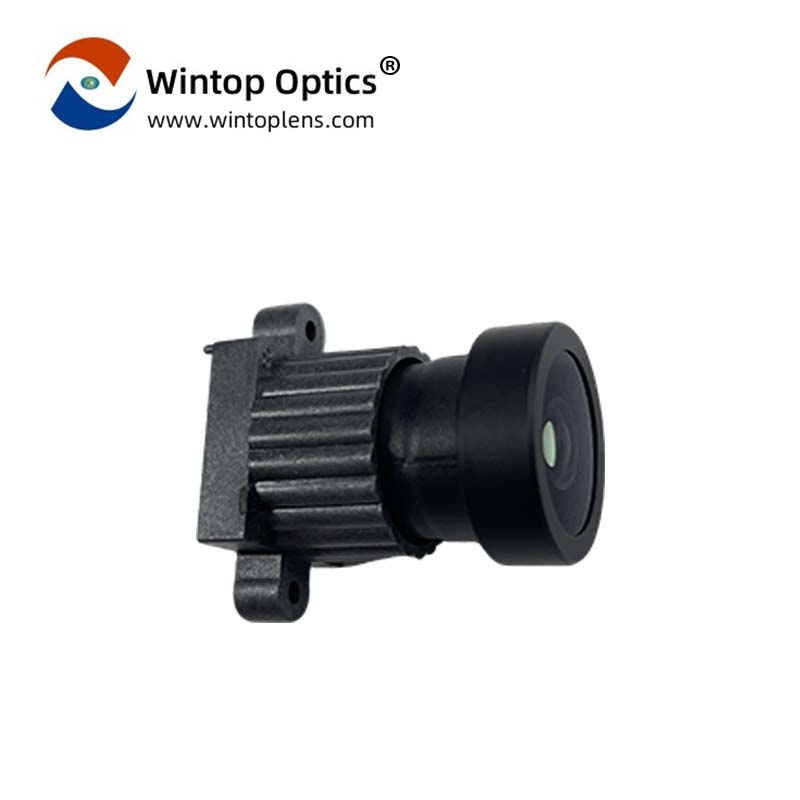

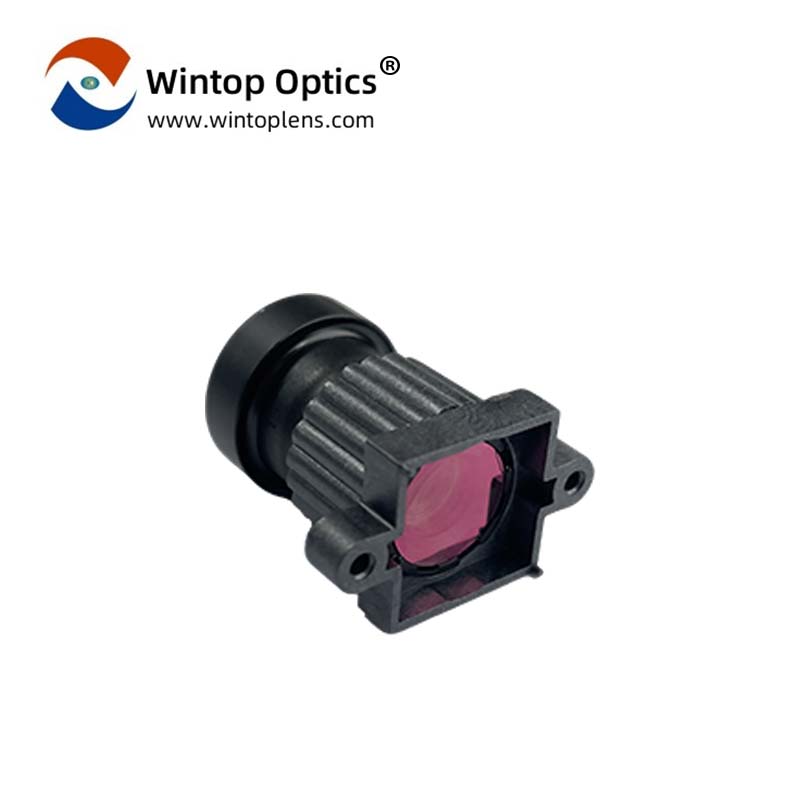

2G5P+1BGYT-1753P-F8:3.30mm EFL IP52 Dust Level F1.1 Large Aperture Dash Camera Lens for Low-Light Recording
| Know More About YT-1753P-F8 F1.1 Large Aperture Dash Camera Lens Parameters |
||||||||||
| Img-Circle(mm) | ∅6.9 | |||||||||
| EFL(mm) | 3.30±5% | |||||||||
| F/NO. | 1.1±10% | |||||||||

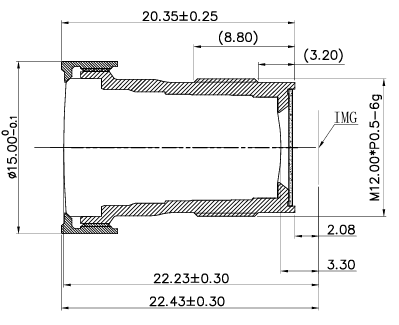

| Optical TTL | 22.23±0.3 | |||||||||
| Mechanical TTL | 22.43±0.3 | |||||||||
| Back Focal Length | 2.08 | |||||||||
| Optical Distortion |
|
|||||||||
| TV Distortion |
|
|||||||||
| Relative Illumination |
|
|||||||||
| CRA |
|
|||||||||
| SENSOR/FOV(H/V/D) | 1/2.7"(101°/70°/136°) 1/2.8"(97°/70°/131°) 1/3"(96°/51°/114°) |
|||||||||
| Storage at Temperature | -20℃/+70℃ | |||||||||
| Recent Camera Distance | 0.2M | |||||||||
| Infrared | No | |||||||||
| Wavelength | @420~600nm Tavg＞90% @650nm±10nm T=50% |
|||||||||
| Dust Level | IP52 | |||||||||
| Structure | 2G5P+1BG | |||||||||
The YT-1753P-F8 dash camera lens is engineered with a large F1.1 aperture, allowing more light to reach the image sensor in challenging lighting conditions. This design significantly improves image brightness and clarity, making it a reliable option among low-light dash camera lenses for night driving and underground or poorly lit roads.
With a 3.30mm effective focal length, this wide-angle dash cam lens captures a broad view of the road ahead. The wide field of view helps record multiple lanes and surrounding traffic conditions, supporting safer driving documentation and making it suitable for automotive wide-angle lenses used in front-facing dash cameras.
The YT-1753P-F8 is optimized for 1/2.7″, 1/2.8″, and 1/3″ image sensors, offering flexible integration across different dash cam platforms. This compatibility ensures stable imaging performance and simplifies optical selection for manufacturers developing dash camera lenses and vehicle camera lenses.
To support wide-angle recording, the lens delivers balanced relative illumination, reducing edge darkening in captured images. This uniform brightness is essential for dash cam imaging lenses, helping ensure consistent image quality across the entire frame during continuous driving recordings.
Built with a 2G5P + 1BG optical structure, the lens provides high optical transmission in the visible light spectrum. This enhances contrast and detail reproduction, making it suitable for high-transmission automotive camera lenses that must adapt to rapidly changing lighting environments.
Featuring a compact form factor and a short back focal length of 2.08mm, the lens supports slim and space-efficient camera module designs. This structure is ideal for embedded dash camera lenses used in modern, lightweight automotive recording devices.
Designed to operate across a -20°C to +70°C temperature range, the YT-1753P-F8 delivers stable performance in diverse driving conditions. Combining large aperture performance, wide-angle coverage, and durable construction, this automotive dash camera lens is well suited for long-term road recording applications.
