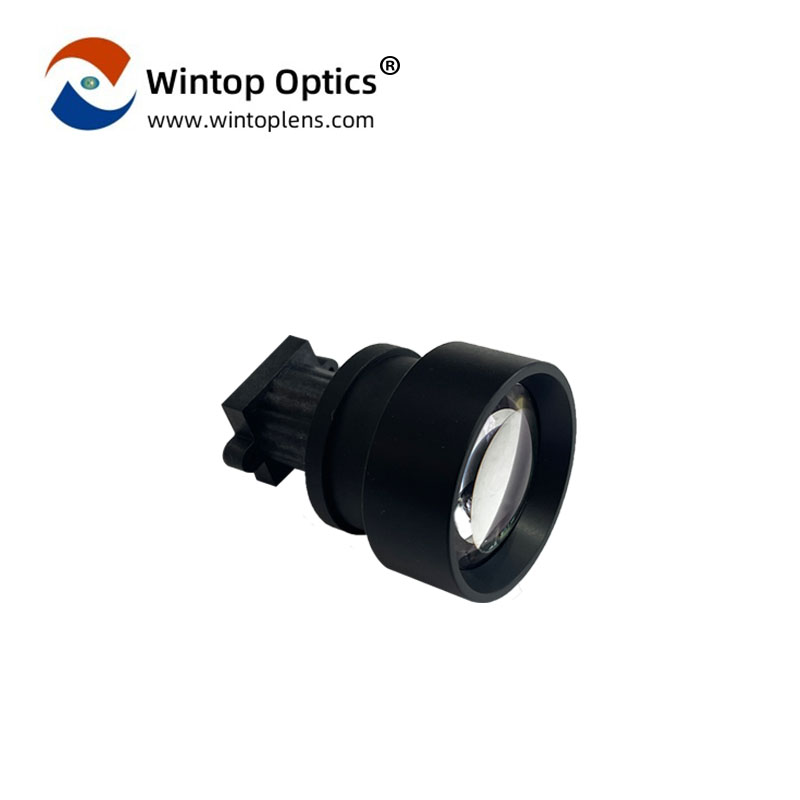

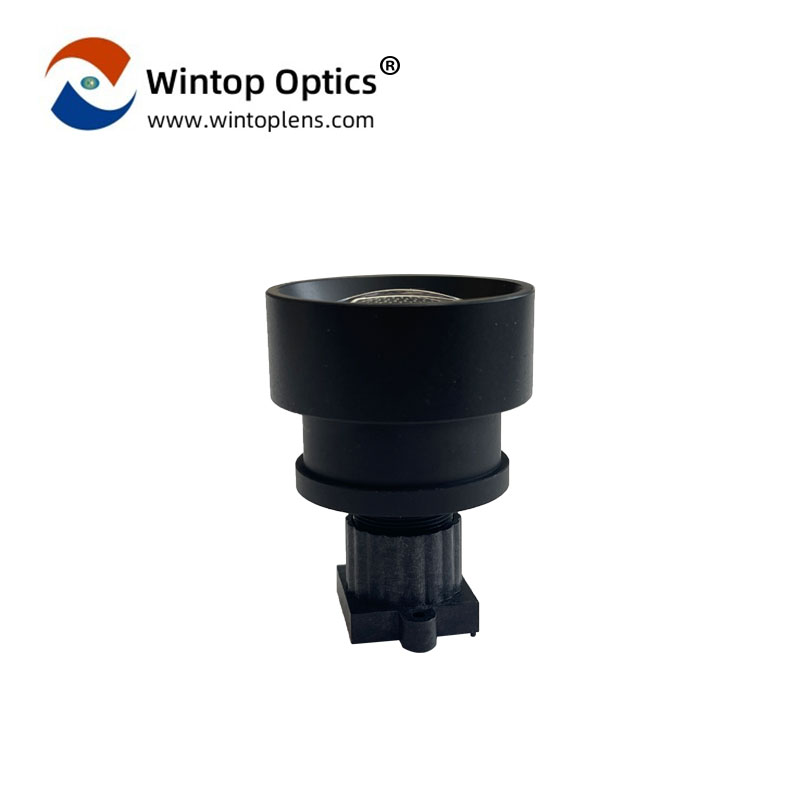

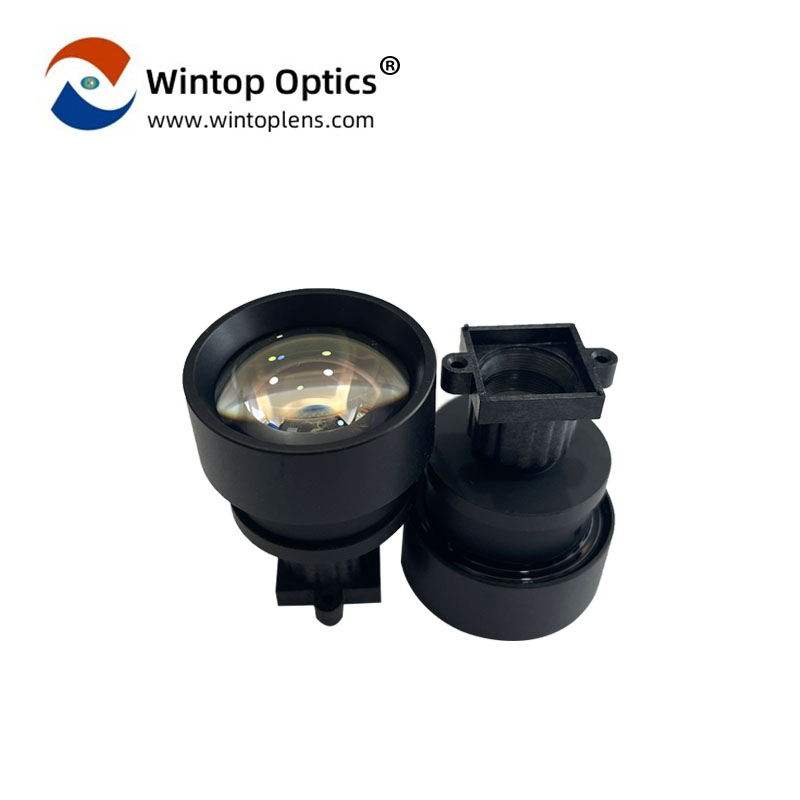

PXA210K Sensor M12 Mount 30mm F1.2 Lens for Drone & Night Vision Applications YT-4045-A6

YT-4045-A6:M12 Mount 30mm F1.2 Lens for Drone & Night Vision Applications

Sensor Compatibility: PXA210K (1960×1120)

This UAV lens is optimized for the PXA210K sensor, featuring a 1960×1120 resolution. It delivers high sensitivity and sharp imaging, making it ideal for applications requiring detailed visuals in low-light environments such as night vision systems and drone surveillance.

Effective Focal Length (EFL): 30mm

The 30mm focal length offers a narrow field of view that excels in long-distance imaging. This is particularly beneficial for precision targeting and object recognition in drone inspections and night monitoring applications.

Aperture: F/1.2 (Large Aperture)

With a fast F/1.2 aperture, this drone lens captures more light, enabling bright and clear images even in extremely low-light conditions. It's especially suited for night vision equipment, reducing reliance on external illumination.

TV Distortion: < -0.24%

The night vision lens features exceptionally low distortion (less than -0.24%), ensuring accurate geometric representation of the scene. This is critical for image analysis, AI recognition, and industrial applications that demand visual precision.

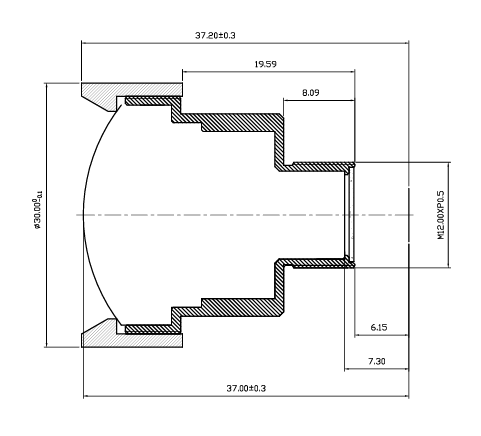

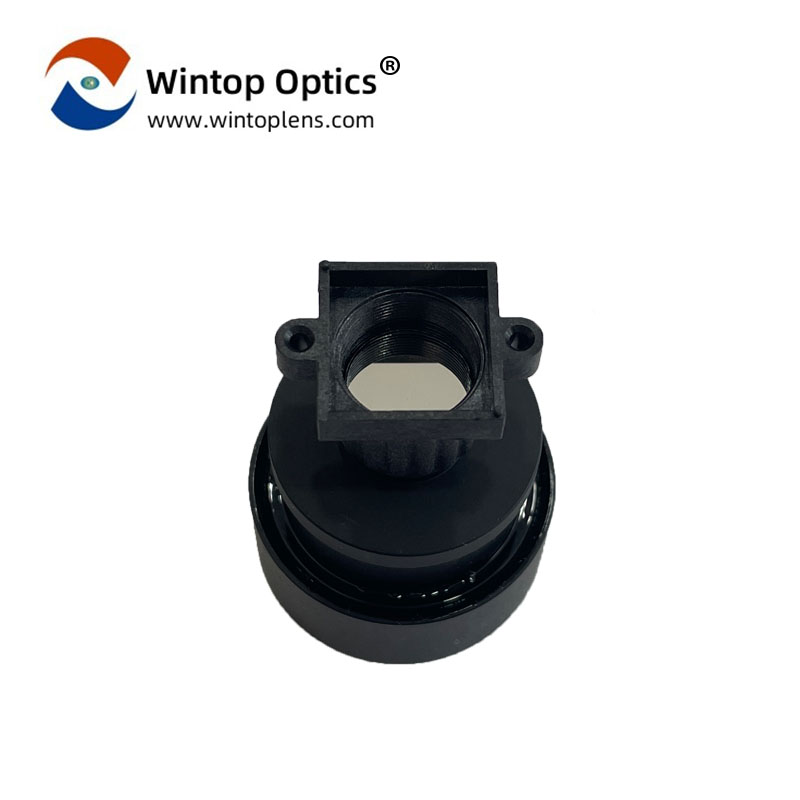

Thread Mount: M12×P0.5

Equipped with a standard M12×P0.5 mount, this S-Mount lens is compatible with most compact camera modules. It's easy to integrate into UAVs, night vision devices, and embedded imaging systems, supporting scalable and modular production.

Field of View (FOV – DHV): 12° / 10° / 6°

Offering a narrow field of view (Diagonal: 12°, Horizontal: 10°, Vertical: 6°), this M12 lens is ideal for long-range applications that require precise targeting and minimal scene distortion, such as drone zoom-in or night targeting.

Spectral Range: 400–1100nm

Supporting a wide spectral range from visible (400nm) to near-infrared (1100nm), this lens enables reliable imaging in both daytime and complete darkness when paired with IR illumination, making it a versatile choice for hybrid vision systems.

IR Filter Specification

Tavg ≤ 3% @ 400–800nm: Effectively blocks visible light to reduce glare and enhance contrast.

T ≥ 90% @ 850±10nm: Optimized for 850nm IR wavelength, allowing high transmission for strong night vision performance.

Tavg ≤ 3% @ 880–1100nm: Reduces stray light from longer wavelengths, improving image clarity and noise control in IR modes.
